black & decker

DW7464

  • View parts by Products
  • View parts by Drawing
Model Type: 1
Model #DW7464 Qualify for free shipping on orders over$250!
Type 1

Model / Type Status : Discontinued

Date of Status : 03/11/2009

Service Life Date : 03/11/2014

Click the #Number to see the part in the interactive diagram. Showing 34 Parts

#1 - TABLE TOP

  • Part # 392121-00 i
  • Description TABLE TOP
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#2 - RAIL

#3 - SCREW

#4 - MOUNTING BRACKET

  • Part # 392123-00 i
  • Description MOUNTING BRACKET
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#5 - SUPPORT BRACKET

  • Part # 392126-00 i
  • Description SUPPORT BRACKET
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#6 - SUPPORT

#7 - RAIL

  • Part # 392125-00 i
  • Description RAIL
  • Availability Discontinued
  • List Price $11.87
  • Your Price $11.87
  • Note : N/A

#8 - LEG

#9 - FOOT

#10 - SCREW

  • Part # 330045-32 i
  • Description SCREW
  • Availability In Stock. Limited Quantities
  • List Price $2.00
  • Your Price $2.00
  • Note : N/A

#11 - FT.RAIL ASY,52

  • Part # 389685-02 i
  • Description FT.RAIL ASY,52
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : INC 141516

#13 - BRACKET

#14 - RIP SCALE,52-IN

  • Part # 388254-01 i
  • Description RIP SCALE,52-IN
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#15 - END CAP

#16 - BUTTON

#17 - RAIL

#18 - SCREW

#19 - SCREW

#20 - WASHER

  • Part # 330016-03 i
  • Description WASHER
  • Availability In Stock. Limited Quantities
  • List Price $1.87
  • Your Price $1.87
  • Note : N/A

#21 - WASHER

  • Part # 098197-09 i
  • Description WASHER
  • Availability In Stock. Limited Quantities
  • List Price $1.44
  • Your Price $1.44
  • Note : N/A

#22 - NUT

  • Part # 330015-03 i
  • Description NUT
  • Availability In Stock. Limited Quantities
  • List Price $1.52
  • Your Price $1.52
  • Note : N/A

#23 - SUPPORT BRACKET

  • Part # 388257-00 i
  • Description SUPPORT BRACKET
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#24 - SCREW-M10 X 80

  • Part # 098204-80 i
  • Description SCREW-M10 X 80
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

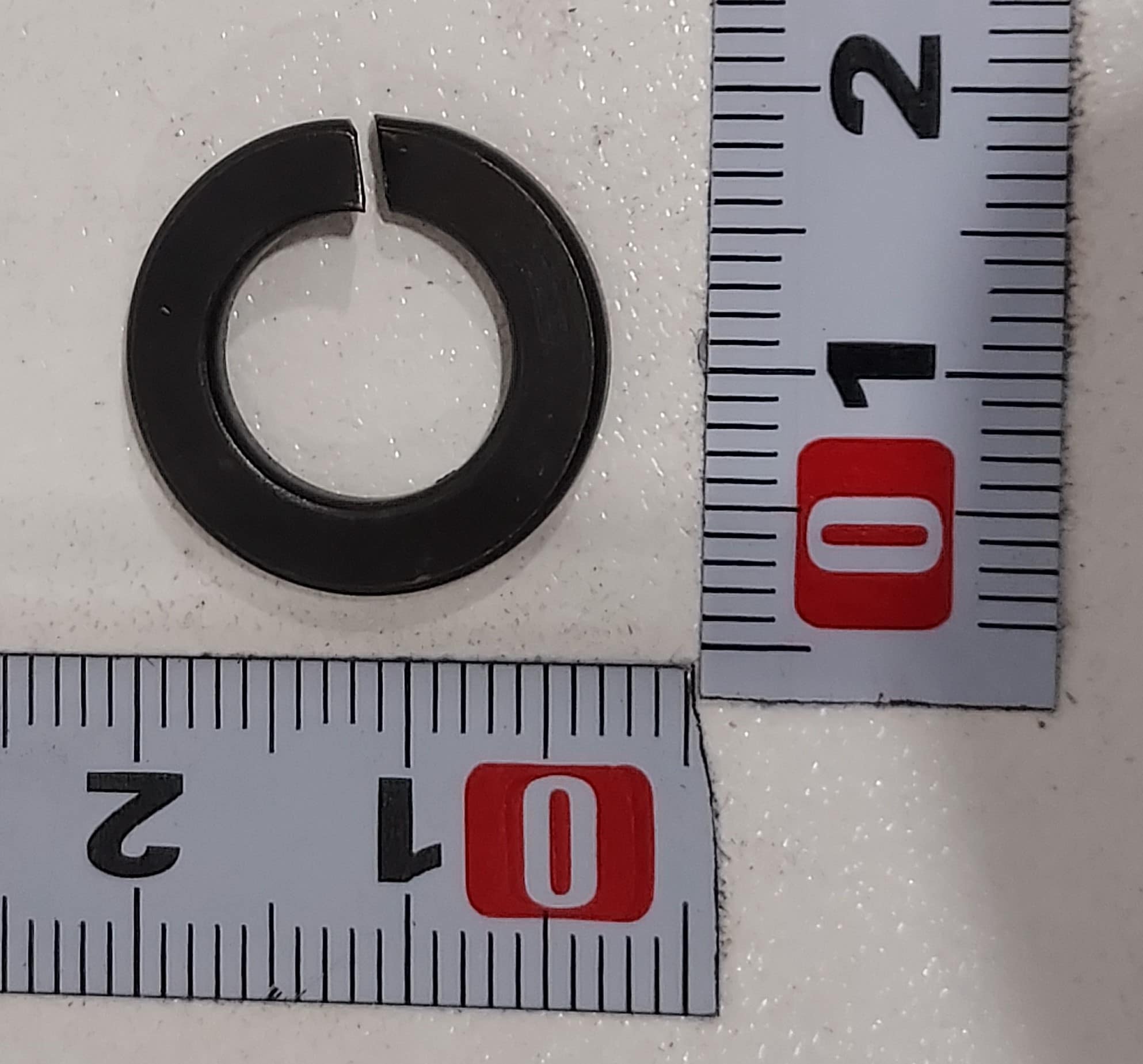

#25 - WASHER LOCK

  • Part # 098197-07 i
  • Description WASHER LOCK
  • Availability In Stock. Limited Quantities
  • List Price $1.44
  • Your Price $1.44
  • Note : N/A

#26 - NUT

  • Part # 330015-08 i
  • Description NUT
  • Availability In Stock. Limited Quantities
  • List Price $1.44
  • Your Price $1.44
  • Note : N/A

#27 - HEX NUT

  • Part # 5140110-60 i
  • Description HEX NUT
  • Availability In Stock. Limited Quantities
  • List Price $1.44
  • Your Price $1.44
  • Note : N/A

#28 - WASHER

  • Part # 330016-04 i
  • Description WASHER
  • Availability In Stock. Limited Quantities
  • List Price $2.00
  • Your Price $2.00
  • Note : N/A

#30 - CARRIAGE BOLT

  • Part # 98130-20 i
  • Description CARRIAGE BOLT
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#31 - FLAT HEAD SCREW

  • Part # 5140095-71 i
  • Description FLAT HEAD SCREW
  • Availability BackOrdered (Due in Stock No ETA)
  • List Price $4.16
  • Your Price $4.16
  • Note : N/A

#32 - TORX 50 WRENCH

  • Part # 152693-01 i
  • Description TORX 50 WRENCH
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A

#32 - DRIVER

#34 - WRENCH

#35 - NAMEPLATE

#846 - ACCESSORY KIT

  • Part # 392601-00 i
  • Description ACCESSORY KIT
  • Availability Contact Service Center
  • List Price N/A
  • Your Price
  • Note : N/A
